Apart from vertical and anchoring dth drilling, there are in practice some situations that necessitate the dth hammers to drill upwardly or at some acute angle upwards, such as tunnel consolidation, grouting works, mining and shaft drilling. MAXA 360 series all directions dth hammers allow you to drill and fire in all angles without any problem to accomplish your harsh drilling task!
All directions dth hammer / 360-070
360-070
model – 4-1/2” API Reg. Pin
The MAXA 360 series all directions down the hole hammers have been developed to fulfill the needs of realistic market niche applications.
Details
Specifications
| operating air pressure | ||||
|---|---|---|---|---|
| psi | bar | cfm | m³/min | |
 | 200 | 13,8 | 667 | 18,9 |
| 250 | 17,2 | 850 | 24,1 | |
| 300 | 20,6 | 1047 | 29,7 | |
| 350 | 24,1 | 1219 | 34,5 | |
| 425 | 29,2 | 1610 | 45,6 | |
| piston specifications | ||||
 | bore | 5,2" | 132 mm | |
| stroke | 4,25" | 108 mm | ||
| hammer scale | ||||
 | O.D. | 6,5" | 165 mm | |
| length | 46,6" | 1183 mm | ||
| weight | 302 lb | 137 kg | ||
| bit range | ||||
 | 7,1" | ~ | 10,75" | |
| 180 mm | ~ | 273 mm | ||
| shank | MK070 | |||
| *specifications are subject to change without notice | ||||
Gallery

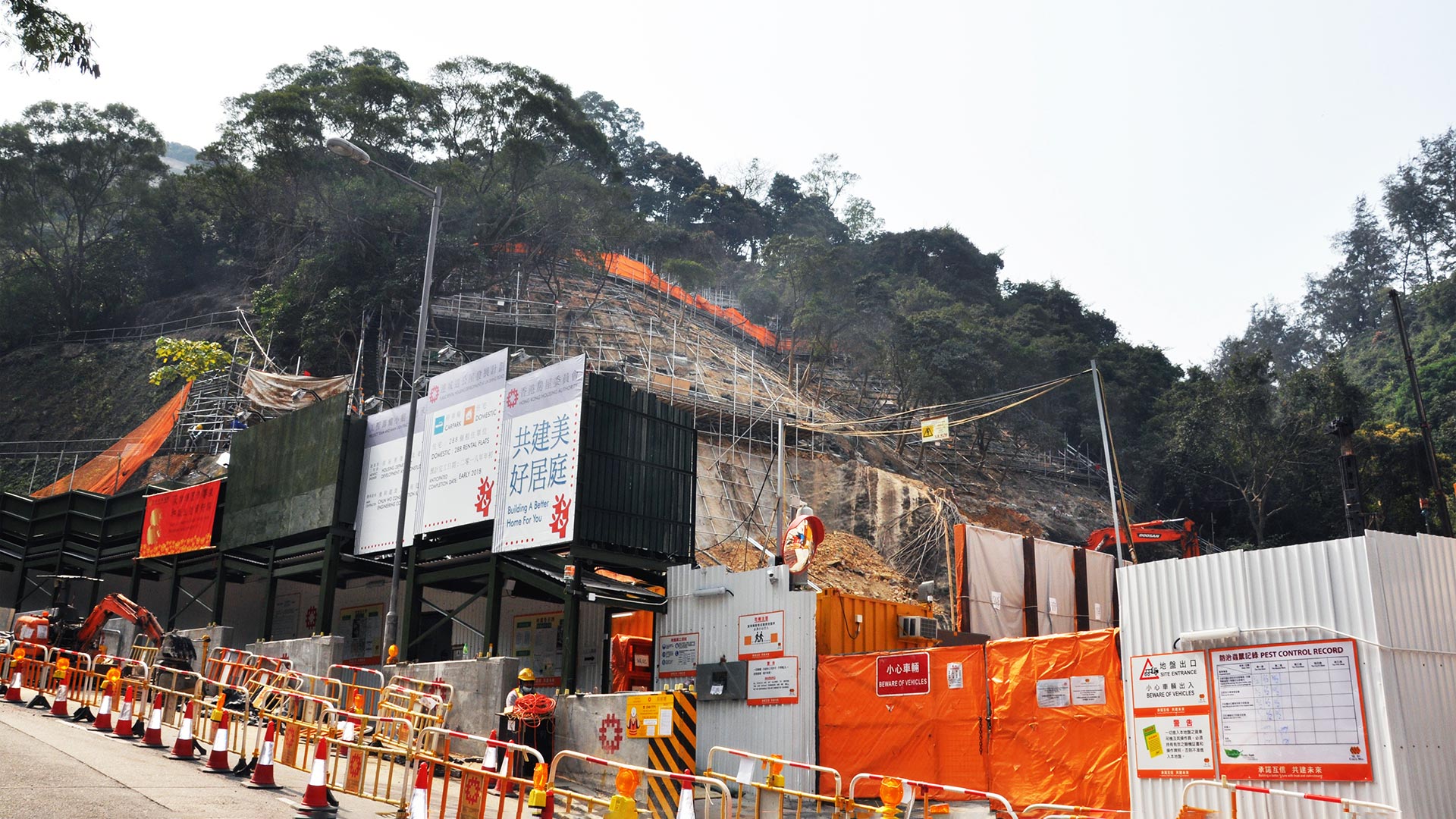

We provide technical rockdrilling solutions to our customers with a variety of rockdrilling needs. We design, manufacture and sell DTH rockdrilling tools for use in building foundation and piling on construction sites, mining and quarrying, water well drilling, utility linings, micro-tunneling and overburden drilling in a variety of geological formations and at considerable depths. Check out the gallery to see us in action.
Video
Every jobsite is a unique enviroment. MAXA DTH Hammers are customizable for every project of all types and sizes such as building foundation, piling on construction sites, mining and quarrying, water well drilling, utility linings, micro-tunneling and overburden drilling in a variety of geological formations and depths. Check out the video to see us in action.
